DESIGN  AND  DEVELOPMENT

SCOPE & EVALUATION

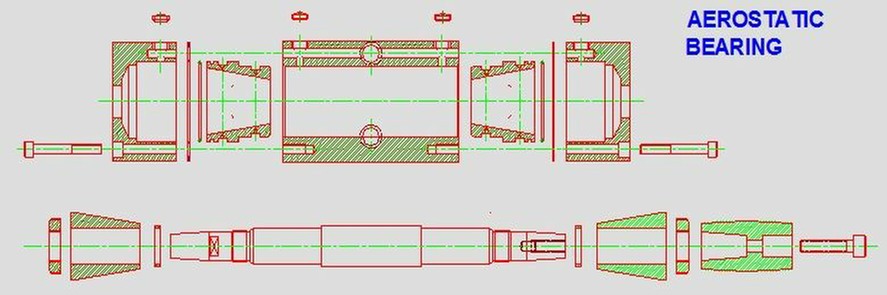

SPINDLE PARTS (DETAILS OF PNEUMATIC SYSTEM NOT SHOWN) HIGH SPEED AEROSTATIC CONICAL BEARINGS, TESTED UP TO 70,000 RPM. THE SYSTEM IS DESIGNED COMPLETE WITH AIR MOTOR FOR DRIVING THE SPINDLE AND WITH SUITABLE PNEUMATIC SYSTEM TO CONTROL THE AIR PRESSURE AND OTHER PARAMETERS.
